Saturday, January 14, 2017

A wintry mess before the very wet and milder arrives next week?

So as we mentioned in our previous blog post, we are expecting to finally break out of this latest cold and dry weather pattern by early next week. So what is going to be responsible for this change? Here is a look at the current weather maps which are supported by what we see on satellite (a good sign if we want to follow a particular weather model):

500 mb map (left) with Integrated Vapor Transport (shows atmospheric rivers denoted by bright colors). Water vapor satellite imagery  on right.
The most noticeable things on the left chart are the large high pressure ridge centered over the Inland Northwest (Large H) as well as the atmospheric river developing north and west of Hawaii. Over the next several days we expect the presence of the high to persist over our area. This means more fog, low clouds, and very cold temperatures in the valleys with light winds. This is because high pressure systems in the winter typically lead to strong inversions (temperature increasing with height). This is especially true when there is widespread snow cover over an area and clearing skies. This is certainly the case right now as we have seen many mornings recently with sub-zero temperatures and mainly clear skies. Here is a look at just how strong the inversion was this morning at our office.

1/14/17 4am weather sounding at NWS Spokane. The red line shows how the temperature varied with elevation. The farther to the right the red line is the warmer the atmosphere is. Notice how the temperature increases all the way from the ground up to 4700'. That is what we would call a strong inversion.
So why are we telling you about this inversion? Because what happens between now and Monday night will be critical into producing an accurate weather forecast. But more on that later. So first, what do we expect to happen to that atmospheric river forming north of Hawaii? By Monday night here is what most of the weather models are showing.
Atmospheric river position 10 pm Monday 1/16/17
According to this we should see the ridge being rapidly replaced by the atmospheric river moving in from the Pacific. Not only is this air stream moist, but it will be warm as well. So that should mean we would see a rapid transition from the current chilly air mass to a much milder one, right?. In other words we should see any threat of snow changing to rain and probably in a short amount of time. But if only it were that easy! This upcoming system will likely provide us with all sorts of weather conundrums simply based on the inversions we showed you earlier.   Here is an example from Moses Lake.

Weather Sounding from Moses Lake 4am Tuesday with the freezing line denoted in pink.
So as the precipitation arrives it could begin as all snow as the entire atmosphere will have temperatures below freezing. But as the atmospheric river comes into the area (being ushered in by southwest winds of 30-40 mph 3000-10,000 ft above the ground) the temperatures above the ground will warm faster than those near the ground and this will create what we call a melting layer or warm nose of air aloft. What this means is any snow which forms in upper portions of the atmosphere will melt as it traverses the melting layer. If the melting layer is deep enough it will melt anything which falls into it. If it's not deep enough it will only partially melt the snow falling into it. In this case we are looking at a melting layer around 4000-5000' thick which should be plenty deep to melt most of the snow falling through it. That's not the whole equation though. What happens after that depends on how deep the freezing layer near the ground is. For the sounding above the freezing air near the ground is around 1500' thick so the question is "is this deep enough to completely freeze what melted before hitting the ground"? If the answer is yes the melted snow would completely refreeze producing sleet or ice pellets. If its not deep enough the melted snow will not refreeze and instead fall as a very cold rain which can easily refreeze once it contact a sub-freezing object on the ground. Here is a nice weather schematic the NWS office in Omaha created that shows the complexity of forecasting winter weather precipitation types.

So what does the profile in the Moses Lake sounding favor? That is always a tough question to answer as any perturbation in the strength/depth of the above ground melting layer and near ground freezing layer has a direct impact on the precipitation type.  If nothing were to change in the models we think this would lead to freezing rain. However the no change argument isn't one that often appears as much as we would desire. Since this event is still a few days away there are numerous answers as to what might occur. While we are confident we will see precipitation, we are far less confident in what the prevailing type of precipitation will consist of. Each model is advertising a different scenario. When we see such great differences we sometimes like to defer to what we call an ensemble model solution. This is were we take the same initial model and introduce very small changes at the very beginning of the run. These small initial changes can lead to vastly different solutions as you get farther into the forecast. So here is a snapshot of the various precipitation chances associated with the incoming weather make during the Tuesday morning commute.
4-panel ensemble solution for the precipitation type on Tuesday morning. Upper left corner=Sleet chance, upper right=Snow chance, lower left=freezing rain chances, lower right=measurable precipitation chances

The image above is about as messy as a weather forecast can get around here. As for sleet or ice pellets (upper left), we'd expect to see the best chances to occur over the western Columbia Basin and into the northern valleys east of Omak. The snow chances (upper right panel) would be highest near the north Cascades, northeast Washington, and over the northern Panhandle. Meanwhile the threat of freezing rain looks most prevalent over the remainder of the the Inland Northwest. But that is what the latest ensemble model runs suggest and this could change significantly as the event nears. Previously we were expecting to see a lot more snow with a brief changeover to freezing rain and then all rain. If we see snow first the freezing rain impacts could be somewhat mitigated as freezing rain falling onto fresh snow has much less impact on driving conditions then freezing rain falling onto bare pavement. Stay tuned to the latest changes in this evolving portion of the forecast.

Eventually (how long is uncertain) the atmospheric river will bring the warm moist over the entire region and mix it down to the ground with the most of the snow or freezing rain chances remaining near the north Cascades or over the far northern valleys. Here is what the temperature profile looks like for Moses Lake at 10 am Tuesday. Notice it's entirely above freezing which means we would see all rain.

10am Tuesday temperature profile for Moses Lake
Once the lower atmosphere warms above freezing we expect it to remain above freezing through the end of the event.The end of the event will likely consist of a good amount of time as the atmospheric river remains fixed over the area. Here is the expected position on Wednesday afternoon and then on Thursday.
Atmospheric River position on Wednesday 1/18/19 4pm.
Atmospheric river position by Thursday morning 1/19/17

That means the atmospheric river will be over the region beginning Monday night and persisting into early Thursday. Needless to say that can result in a lot of precipitation. Just how much are we expecting? Here are four distinct model runs.

72 hour precipitation ending 4 pm Thursday

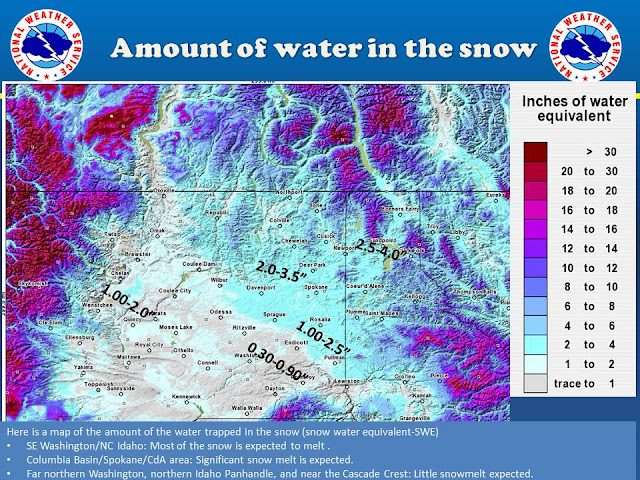

Surprisingly there is very good agreement for a forecast this far out. We are quite confident that the precipitation over the western Columbia Basin and in the lee of the Cascades is a little bit overdone, and near the Cascade Crest and over north Idaho it might be underdone. Nonetheless these are some very impressive precipitation amounts. Looks like the eastern third of Washington and the Idaho Panhandle should generally see anywhere from 1.50"-3.00 inches. If there were no snow on the ground this alone could produce some issues with low-land flooding and perhaps some ice jam flooding as the ice breaks up on area rivers. However that is not the case as we have an appreciable amount of snow on the ground. Here is a look at the approximate amount of water tied up in the snow pack.

That is quite a bit of water or potential runoff sitting on the ground and will only add to the runoff totals. Based on the forecast temperatures, we expect to see temperatures remaining above freezing from Tuesday through much of Thursday (including nighttime low temperatures). The above freezing temperatures will combine with breezy winds resulting in a great setup for appreciable melting. The best melting potential will occur the SE third of our forecast area with the least amount near the Cascades and far northern valleys. We still expect to see most if not all the snow to melt over the Palouse, LC Valley, and eastern Columbia Basin. So combining the expected rainfall with the water from the snow melt could equate to up to 2.50 to nearly 5.00 inches of water which could potentially runoff. This increases the odds for flooding appreciably. Here is a map of where we anticipate the greatest flooding problems to occur.

We expect most of the flooding issues will involve low-land flooding, ice jam flooding, and urban flooding (think snow clogged storm drains...clear them now if you can!). Small rivers and streams could also flood, especially over the Palouse and nearby areas. As of now we are not expecting any mainstem flooding, however that could change especially if we melt more snow than expected.

If we look into the longer range weather forecasts, we don't expect to totally dry out, but we will cool considerably. Not down to current levels, but certainly enough to refreeze what doesn't melt. The pristine snow cover we have over us will look completely different by next Friday and could feature hard snowpack and frozen slush.

Please stay tuned to the latest forecasts for this upcoming will likely be a messy situation and is certainly subject to change. Oh yes...the countdown to spring is now 64 days and counting.
